MASTERETCH 750 SERIES
Masteretch 750 Series
The 750 series is a range of high performance high volume production equipment that can be configured and customised to meet your requirements.

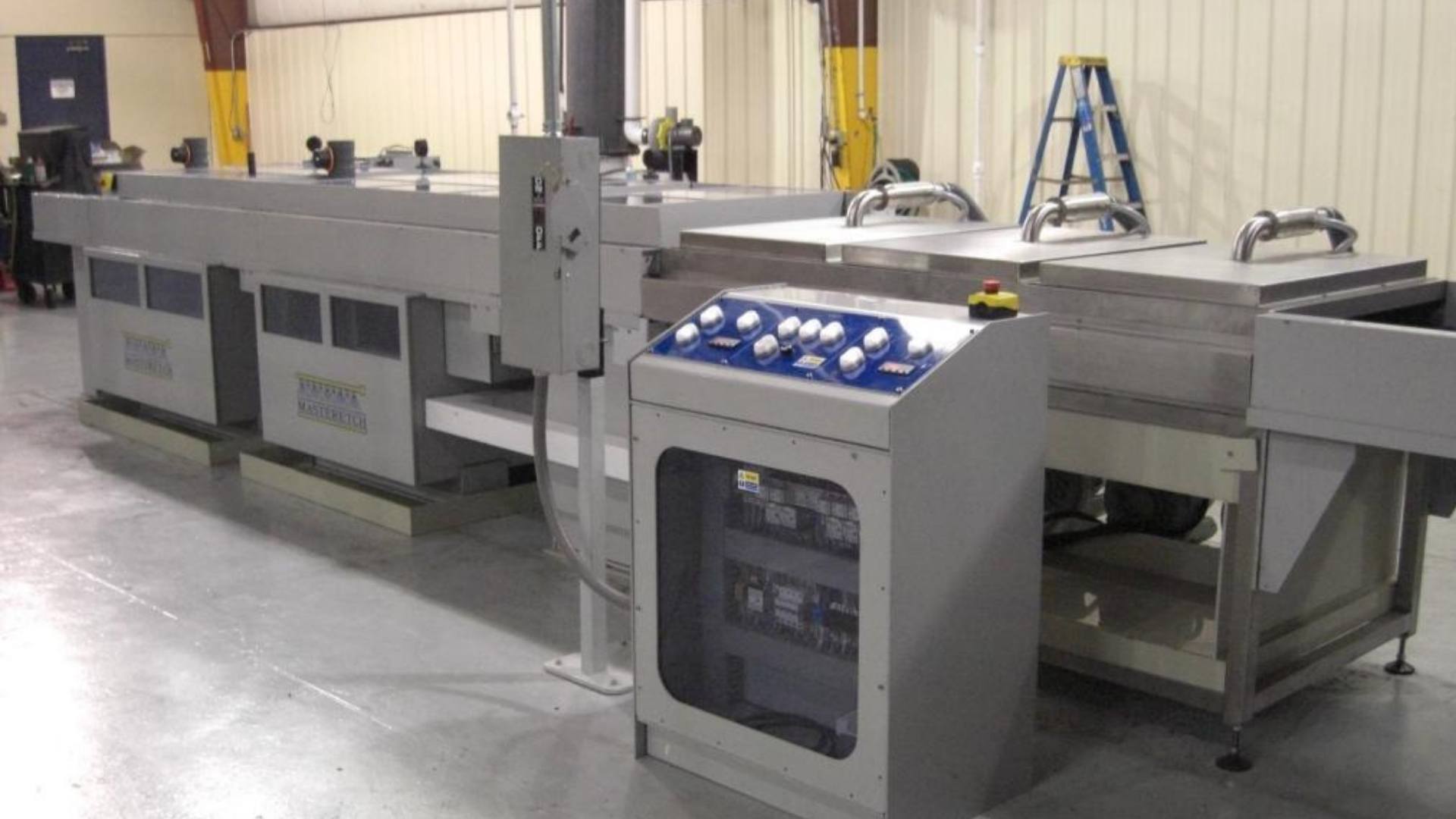

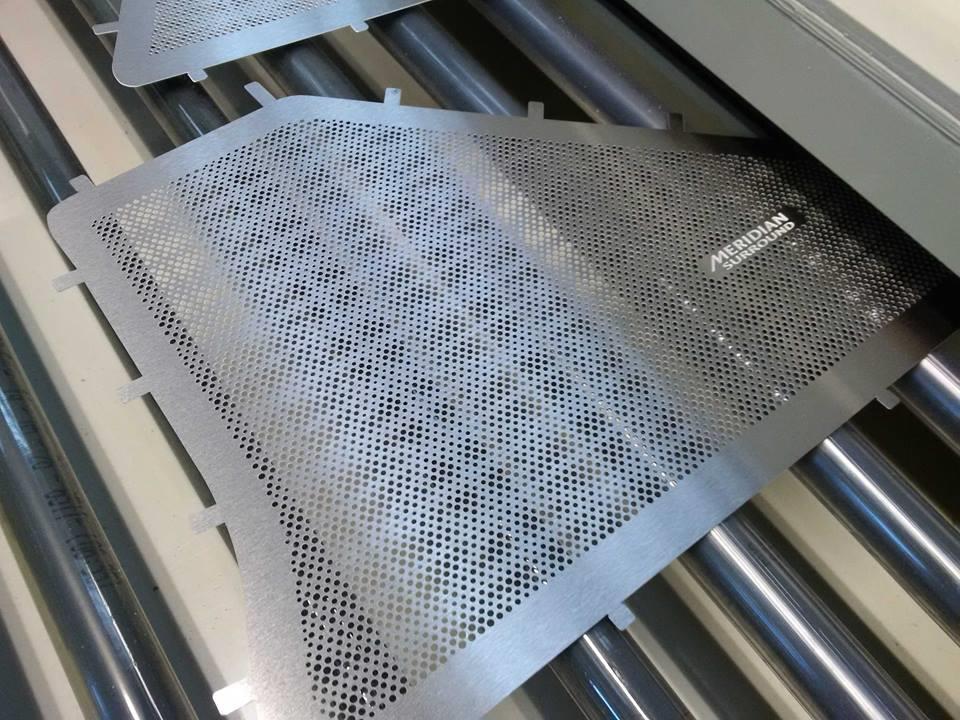

As a powerful standalone etching machine or as a complete automatic etch line the 750 Series is capable of the most demanding chemical milling and signage applications.
Masteretch 750 Series Etch/Rinse

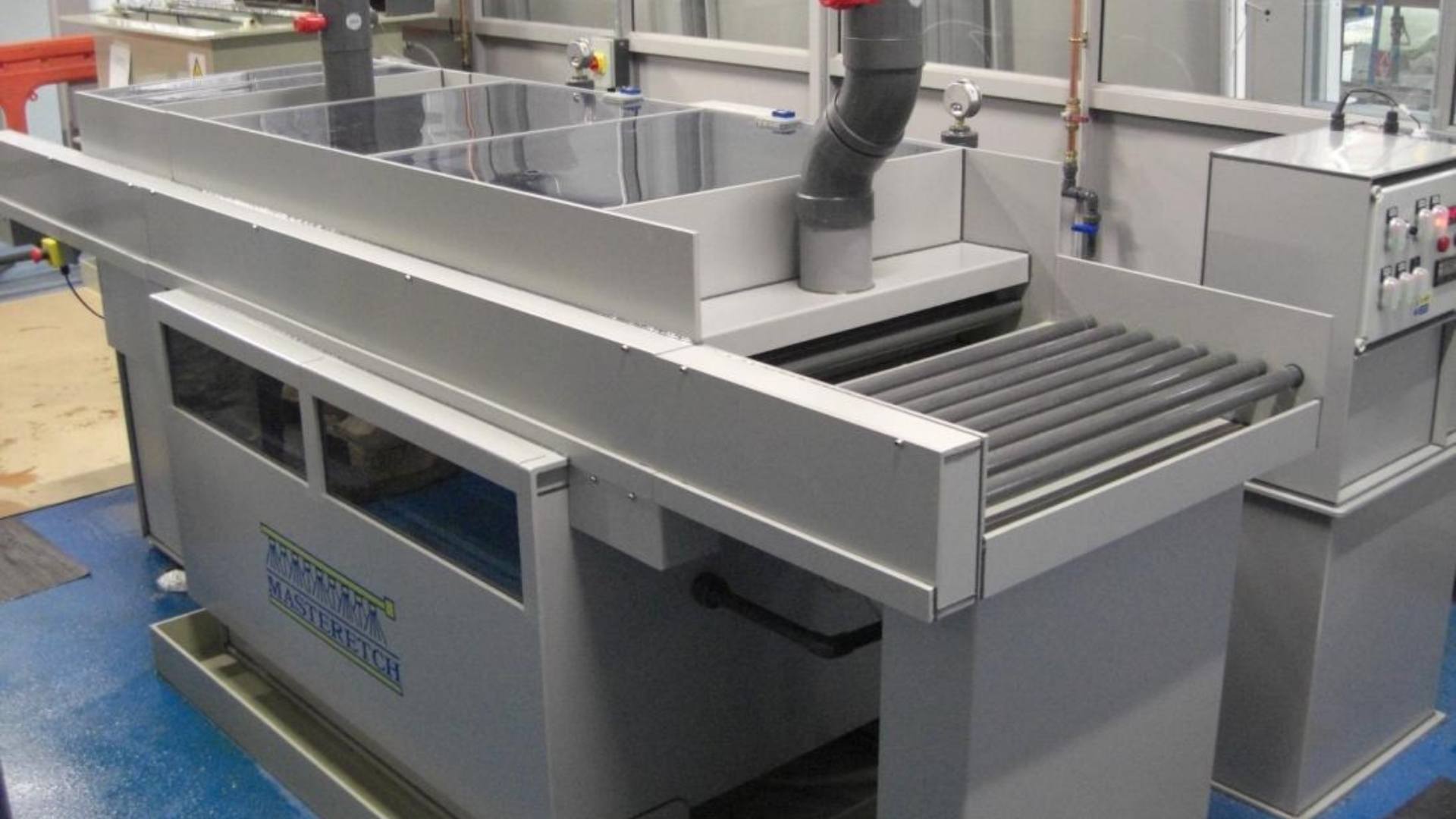

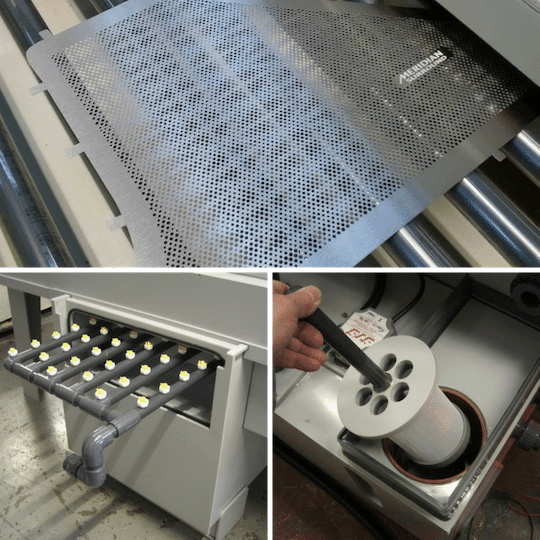

MASTERETCH 750 ETCH/RINSE
Conveyor width 750mm (30”)
Conveyor control DC shunt motor with digital readout speed control
Conveyor drive 1 to 1 polypropylene drive gears
Pump 2.2kw glandless submersible unit
Filter external access lift out filter baskets
Heating 3kw titanium element
Temperature control Digital readout electronic thermostat

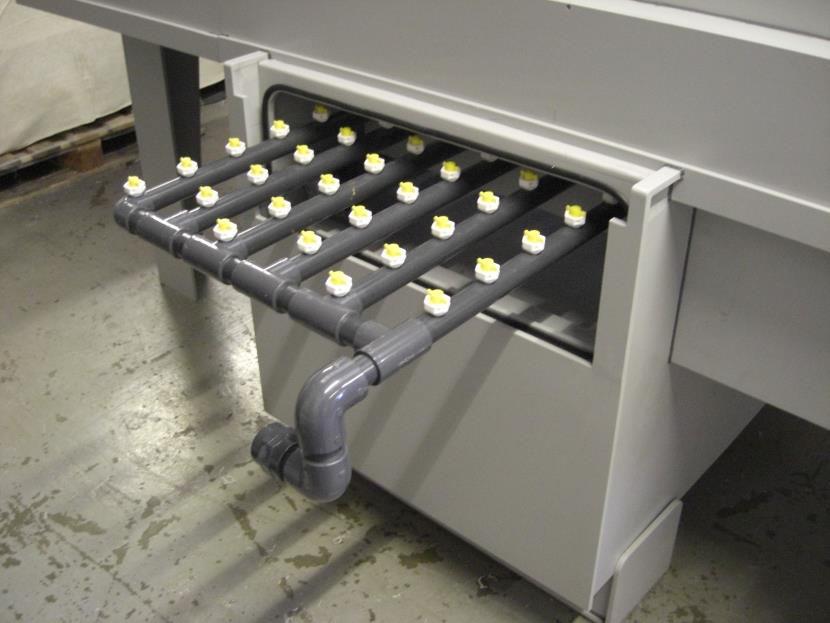

Spray banks 6 top 6 bottom, quick release fan jets
Carryover gap 4 sets squeegee rollers to prevent solution carryover
Rinse
2 stages, pumped and fresh
Pump High torque magnetic drive unit
Filter Lift out filter on input side of pump
Spray bars Top and bottom spray bars
Fresh rinse Top and bottom spray bars, overflow to pumped stage
Dimensions Length 1500 (60”) Width 1200mm (48”) Height 1200 (47”)
Services 3 phase, ½” water in, 1 ½” drain
Safety
☑
Low liquid level cut outs
☑
Chamber access door interlocks
☑
Emergency stop switch to each end of line

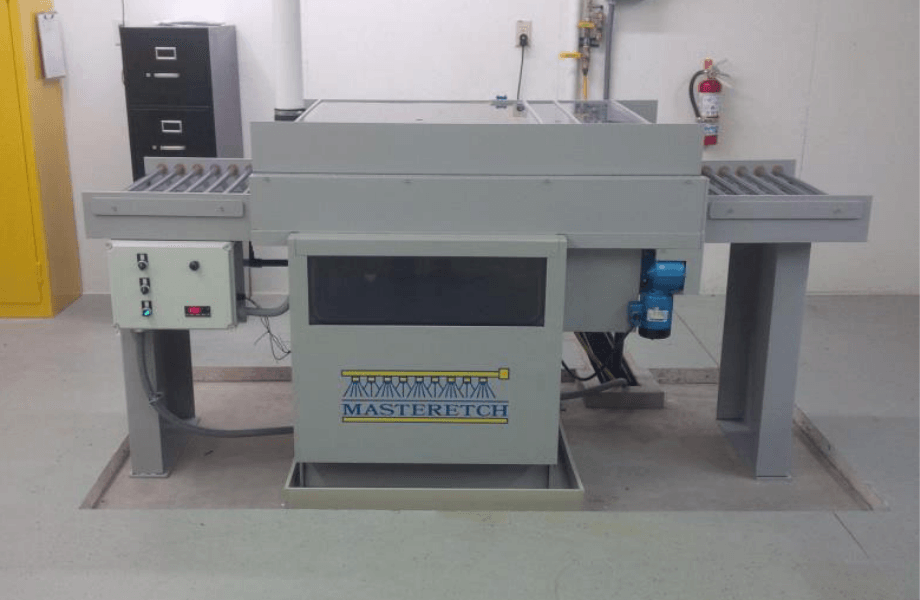

Masteretch 750 Series Etch/Rinse
MASTERETCH 750 DOUBLE ETCHER
2 stage rinse, Load & Unload Conveyors
Conveyor width 750mm
Conveyor control DC shunt motor with digital readout speed control
Conveyor drive 1 to 1 polypropylene drive gears
Pumps 2 x 3kw glandless submersible pumps, titanium shaft
Filters External access lift out filters
Heating 4 x 3kw titanium heaters
Temperature Control Digital readout electronic thermostat
Cooling 6mtr’ ¾” bore titanium coil interlocked to thermostat
Spray banks 12 top spray bars
Spray jets Quick release fan jets
Carryover gap 6 sets squeegee rollers to prevent solution carryover
Rinse 1 High torque magnetic drive pump
Filter Lift out filter on input side of pump
Spray bars Top and bottom spray bars
Rinse 2 Fresh rinse cascades into rinse 1
Dimensions Length 3235mm x width 1250mm x height 1200mm
Includes 2 x 600mm load/unload conveyors
Services 3 phase ½ water input for rinse
Safety
☑
Low liquid level cut outs
☑
Fume extraction outlet
☑
Chamber access door interlocks
☑
Emergency stop switch to each end of line
☑
Double lids to process chamber
☑
Machine stands in containment tray
Masteretch 750 Series Etch/Rinse
MASTERETCH 750 COMPLETE ETCH LINE
CLEAN > DEVELOP > ETCH > STRIP > DRY
SPECIFICATIONS
Conveyor width:
750mm (30”)
Conveyor control:
DC shunt motor with digital readout speed control
Conveyor drive:
1 to 1 polypropylene drive gears
Pump:
2.2kw glandless submersible unit
Filter:
external access lift out filter baskets
Heating:
3kw titanium element
Temperature control:
Digital readout electronic thermostat
Spray banks:
6 top 6 bottom, quick release fan jets
Carryover gap:
4 sets squeegee rollers to prevent solution carryover
Rinse:
2 stages, pumped and fresh
Pump:
High torque magnetic drive unit
Filter:
Lift out filter on input side of pump
Spray bars:
Top and bottom spray bars
Fresh rinse:
Top and bottom spray bars, overflow to pumped stage
Dimensions:
Length 1500 (60”)
Width 1200mm (48”)
Height 1200 (47”)
Services:
3 phase, ½” water in, 1 ½” drain
Safety:
☑
Low liquid level cut outs
☑ Chamber access door interlocks
☑ Emergency stop switch to each end of line
Masteretch 750 Series Double Etcher 2 stage rinse - load & unload conveyors
Conveyor width:
750mm
Conveyor control:
DC shunt motor with digital readout speed control
Conveyor drive:
1 to 1 polypropylene drive gears
Pumps:
2 x 3kw glandless submersible pumps, titanium shaft
Filters:
External access lift out filters
Heating:
4 x 3kw titanium heaters
Temperature Control:
Digital readout electronic thermostat
Cooling:
6mtr’ ¾” bore titanium coil interlocked
to thermostat
Spray banks:
12 top spray bars
Spray jets:
Quick release fan jets
Carryover gap:
6 sets squeegee rollers to prevent solution carryover
Rinse 1:
High torque magnetic drive pump
Filter:
Lift out filter on input side of pump
Spray bars:
Top and bottom spray bars
Rinse 2:
Fresh rinse cascades into rinse 1
Dimensions:
Length 3235mm
width 12500mm
height 1200mm
Includes 2 x 600mm load/unload conveyors
Services
3 phase ½ water input for rinse
Safety
☑ Low liquid level cut outs
☑ Fume extraction outlet
☑ Chamber access door interlocks
☑ Emergency stop switch to each end of line
☑ Double lids to process chamber
☑ Machine stands in containment trays

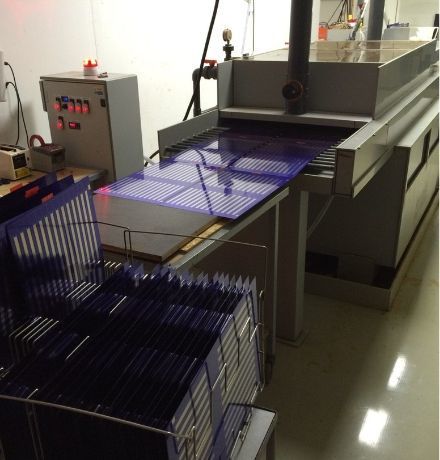

Masteretch 750 Series Complete Etch Line Clean > develop > Etch > Strip
Masteretch 750 series models can be linked together to form complete inline automated etching lines. We offer a number of customization options to suit your production needs.
Standard Model range
750mm (30” wide)
Model 750 Etcher/Rinse
Model 750 Double Etcher
Model 750 Triple cascade Rinse
Model 750 Developer/Rinse
Model 750 Stripper/Rinse
Model 750 Load/unload/inspection conveyor
Model 750 Dryer
Customization options include:
Wide Format Conveyor (up to 1500mm (60" wide)
Oscillating Spray Bars
Additional Inspection Conveyors
Automated Etch Chemistry Control Unit
Standard Model range 750mm (30” wide)
Model 750 Etcher/Rinse
Model 750 Double Etcher
Model 750 Triple cascade Rinse
Model 750 Developer/Rinse
Model 750 Stripper/Rinse
Model 750 Load/unload/inspection conveyor
Model 750 Dryer
Customization options include:
Wide Format Conveyor (up to 1500mm (60" wide)
Oscillating Spray Bars
Additional Inspection Conveyors
Automated Etch Chemistry Control Unit
